Switching Made Smarter

NoviFlow delivers the only commercial-grade OpenFlow v1.3/1.4/1.5 switches in the market that offer up to 240 gigabits per second of genuine wire-speed performance, up to 1 million wildcard match flow entries, up to 15 million exact match flow entries and up to 40,000 flow-mods/sec.

Our switches were specifically designed for deployment in carrier networks and data centres looking to leverage the benefits of software-defined networking to improve the cost/performance, security, scalability and flexibility of networks. Applications include SD-WAN, SDN based Access Networks, Network Optimization, NFV, EPC, Cloud, and Hyperscale Networking.

Our switches deliver maximum OpenFlow capability in a compact form factor. The system is provided in a stand-alone, self-contained, rack-mountable enclosure box that can be configured to support a wide variety of networking applications to deliver unmatched performance levels.

Our latest switching products include:

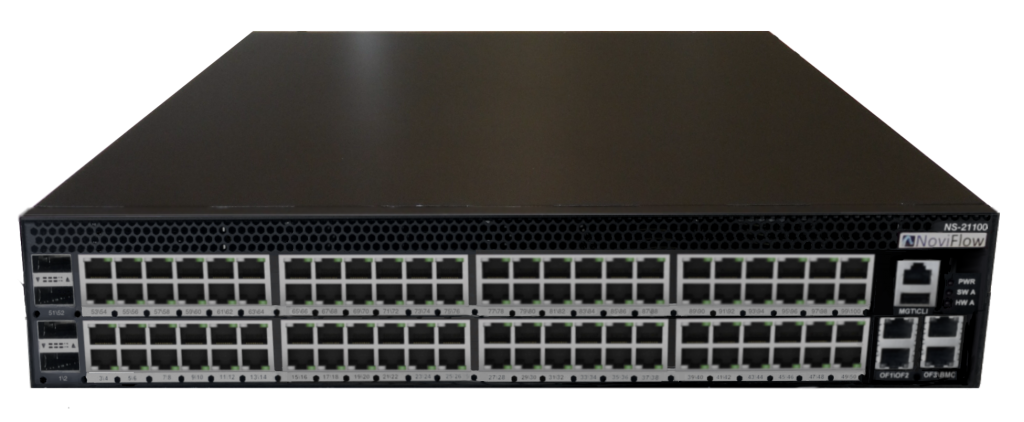

Noviflow 21100 Features the NoviWare 400 OpenFlow switching software implementing all OF 1.3 actions, instructions and matching fields, and key features of OpenFlow 1.4 and 1.5 240 Gbps throughput powered by one EZchip NP-5 NPU 100 data plane ports 4 cages for QSFP+ transceivers providing 40GE connectivity 96 x 10/100/1000BASE-T Ethernet ports Dedicated Ethernet ports for management and connection to OpenFlow Controller A powerful Intel Core i7-4700EQ quad-core 2.4GHz host CPU Optimized TCAM memory (optional) supports 125K to 1 million entries in wild card match flow tables, with up to 60 wild card match flow tables Supports up to 15 million entries in exact match flow tables (48 bytes wide), with up to 60 exact match flow tables Up to 40,000 flow-mods/second Up to 12,000 entries in Groups table Up to 4096 meters Dynamic configuration and reporting via CLI Designed for resilience with dual redundant power supplies and reversible air flow

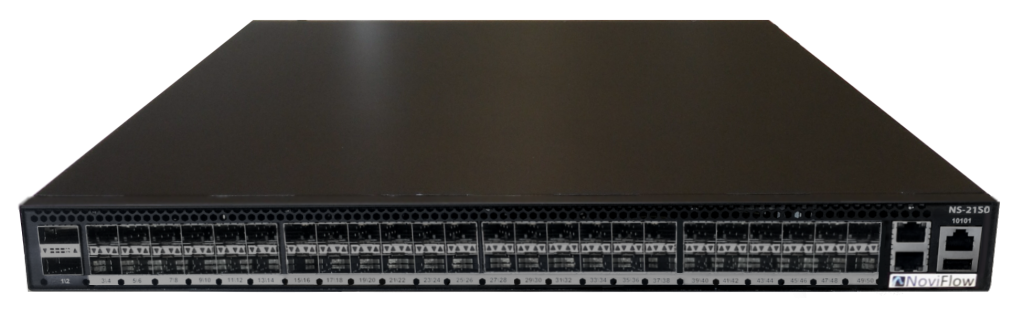

Noviflow 2150 Features the NoviWare 400 OpenFlow switching software implementing all OF 1.3 actions, instructions and matching fields, and key features of OpenFlow 1.4 and 1.5 128 Gbps throughput powered by one EZchip NP-5 NPU 50 data plane ports 2 cages for QSFP+ transceivers providing 40GE connectivity 48 cages for SFP transceivers providing 1GE connectivity Dedicated Ethernet ports for management and connection to OpenFlow Controller A powerful Intel Core i7-4700EQ quad-core 2.4GHz host CPU Optimized TCAM memory (optional) supports 125K to 1 million entries in wild card match flow tables, with up to 60 wild card match flow tables Supports up to 15 million entries in exact match flow tables (48 bytes wide), with up to 60 exact match flow tables Up to 40,000 flow-mods/second Up to 12,000 entries in Groups table Up to 4096 meters Dynamic configuration and reporting via CLI Designed for resilience with dual redundant power supplies and reversible air flow

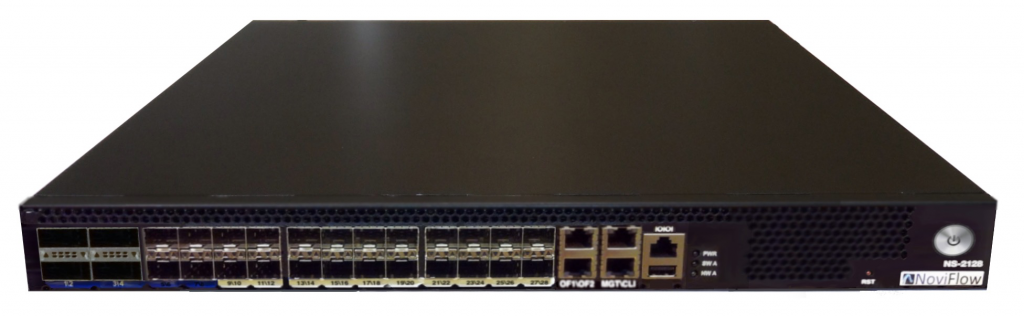

Noviflow 2128 Features the NoviWare 400 OpenFlow switching software implementing all OF 1.3 actions, instructions and matching fields, and key features of OpenFlow 1.4 and 1.5 240 Gbps throughput powered by one EZchip NP-5 NPU 28 data plane ports 4 cages for QSFP+ transceivers providing 40GE connectivity 4 cages for SFP+ transceivers providing 10GE connectivity 20 cages for SFP+/SFP transceivers providing 10GE/1GE connectivity Dedicated Ethernet ports for management and connection to OpenFlow Controller A powerful Intel Core i7-4700EQ quad-core 2.4GHz host CPU Optimized TCAM memory supports 125K to 1 million entries in wild card match flow tables, with up to 60 wild card match flow tables Supports up to 15 million entries in exact match flow tables (48 bytes wide), with up to 60 exact match flow tables Up to 40,000 flow-mods/second Up to 12,000 entries in Groups table Up to 4096 meters Dynamic configuration and reporting via CLI Designed for resilience with dual redundant power supplies and reversible air flow

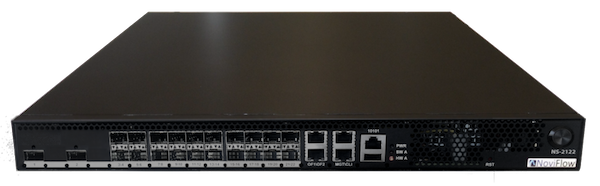

Noviflow 2122 Features the NoviWare 400 OpenFlow switching software implementing all OF 1.3 actions, instructions and matching fields, and key features of OpenFlow 1.4 and 1.5 240 Gbps throughput powered by one EZchip NP-5 NPU 22 data plane ports 2 cages for QSFP28 transceivers providing 100GE connectivity 20 cages for SFP+/SFP transceivers providing 10GE/1GE connectivity Dedicated Ethernet ports for management and connection to OpenFlow Controller A powerful Intel Core i7-4700EQ quad-core 2.4GHz host CPU Optimized TCAM memory supports 125K to 1 million entries in wild card match flow tables, with up to 60 wild card match flow tables Supports up to 15 million entries in exact match flow tables (48 bytes wide), with up to 60 exact match flow tables Up to 40,000 flow-mods/second Up to 12,000 entries in Groups table Up to 4096 meters Dynamic configuration and reporting via CLI Designed for resilience with dual redundant power supplies and reversible air flow

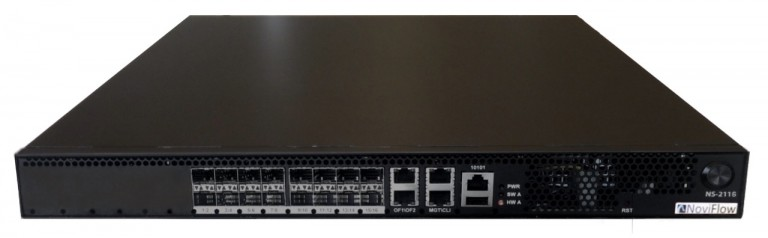

Noviflow 2116 Features the NoviWare 400 OpenFlow switching software implementing all OF 1.3 actions, instructions and matching fields, and key features of OpenFlow 1.4 and 1.5 160 Gbps throughput powered by one EZchip NP-5 NPU 16 data plane ports cages for SFP+/SFP transceivers providing 10GE/1GE connectivity Dedicated Ethernet ports for management and connection to OpenFlow Controller A powerful Intel i5-4402E dual core 1.6GHzz processor with 8GB of DDR3 memory and 32GB M.2 SATA SSD for permanent storage Optimized TCAM memory supports up to 16,384 wildcard match entries in up to 16 flow tables Supports up to 15 million entries in exact match flow tables (48 bytes wide), with up to 60 exact match flow tables Up to 15,000 flow-mods/second Up to 12,000 entries in Groups table Up to 4096 meters Dynamic configuration and reporting via CLI Designed for resilience with dual redundant power supplies and reversible air flow
Noviflow 1248 Features the NoviWare 400 OpenFlow switching software implementing all OF 1.3 actions, instructions and matching fields, and key features of OpenFlow 1.4 and 1.5 200 Gbps throughput powered by two EZchip NP-4 NPUs 48 data plane ports 20 cages for SFP+/SFP transceivers providing 10GE/1GE connectivity 28 cages for SFP transceivers providing 1GE connectivity Dedicated Ethernet ports for management and connection to OpenFlow Controller Intel Core i7 620LE processor: Dual core 2.0GHz with up to 8GB of DDR3 memory and 16GB SSD NAND flash for storage Optimized TCAM memory supports 125K to 1 million entries in wild card match flow tables, with up to 60 wild card match flow tables Supports up to 15 million entries in exact match flow tables (48 bytes wide), with up to 60 exact match flow tables Up to 15,000 flow-mods/second Up to 12,000 entries in Groups table Up to 4096 meters Dynamic configuration and reporting via CLI Designed for resilience with dual redundant power supplies and multiple dual-rotator fans
Noviflow 1132 Features the NoviWare 400 OpenFlow switching software implementing all OF 1.3 actions, instructions and matching fields, and key features of OpenFlow 1.4 and 1.5 100 Gbps throughput powered by an EZchip NP-4 NPU 32 data plane ports 10 cages for SFP+/SFP transceivers providing 10GE/1GE connectivity 22 cages for SFP transceivers providing 1GE connectivity Dedicated Ethernet ports for management and connection to OpenFlow Controller Intel Core i7 620LE processor: Dual core 2.0GHz with up to 8GB of DDR3 memory and 16GB SSD NAND flash for storage Optimized TCAM memory supports 62.5K to 500K entries in wild card match flow tables, with up to 60 wild card match flow tables Supports up to 15 million entries in exact match flow tables (48 bytes wide), with up to 60 exact match flow tables Up to 15,000 flow-mods/second Up to 12,000 entries in Groups table Up to 4096 meters Dynamic configuration and reporting via CLI Designed for resilience with dual redundant power supplies and multiple dual-rotator fans
